Reliable. Efficient. Safe.
A smart dispensing solution for modern CNG fueling infrastructure.
Designed for modern compressed natural gas fueling stations that require accurate measurement, reliable operation, and safe high-pressure dispensing.
Built for commercial and industrial use, the system combines advanced automation, intelligent controls, secure transaction management, and operator-friendly functionality.

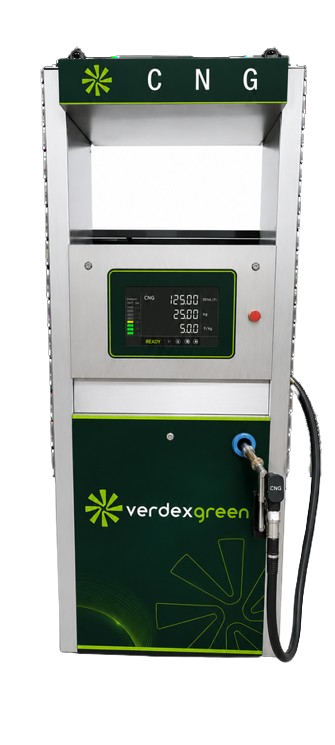

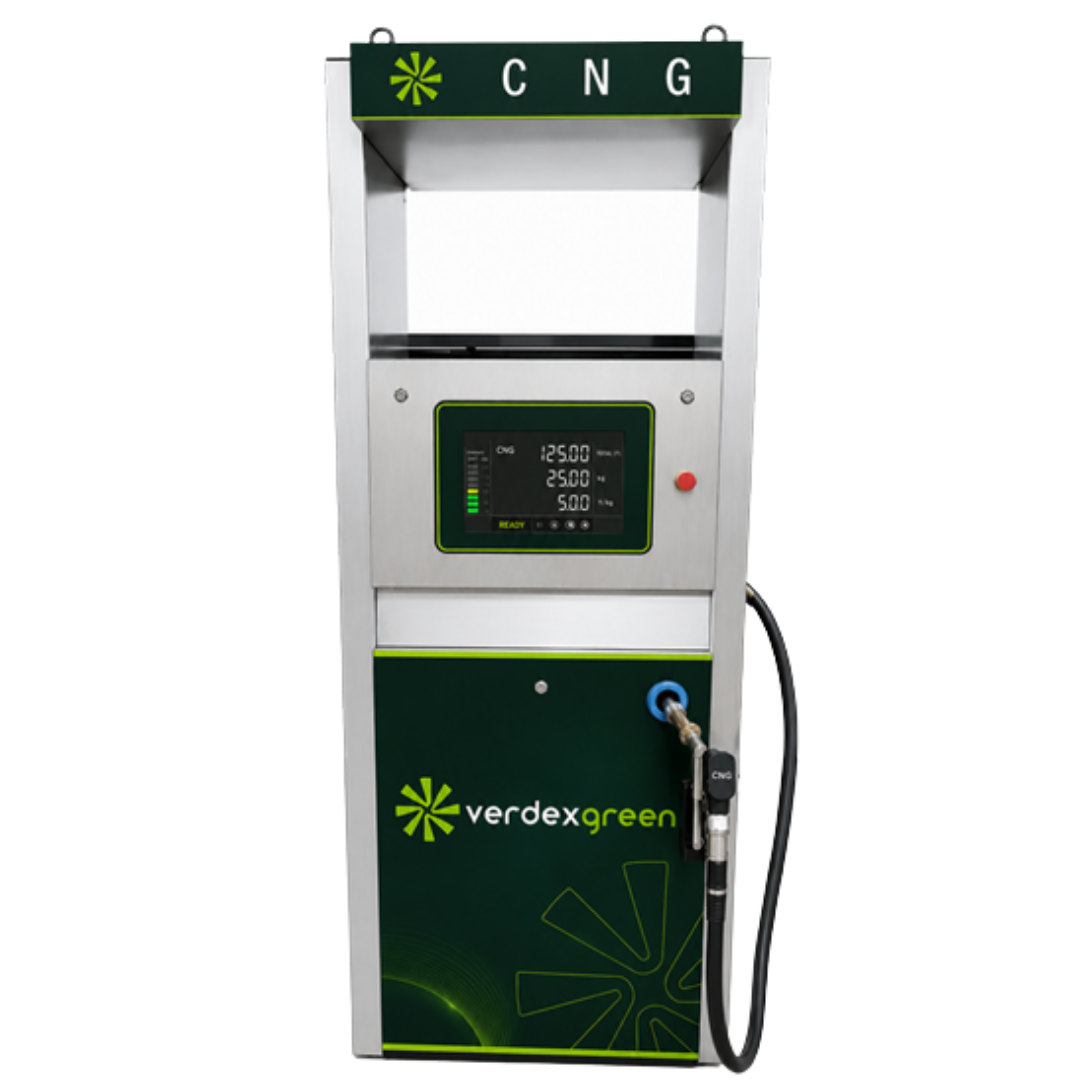

The dispenser is suitable for high-usage CNG stations, fleet fueling points, and industrial fueling applications. With a robust two-nozzle configuration, RS485 communication interface, NGV-1 nozzle compatibility, and advanced safety-focused design, it delivers dependable performance for daily fueling operations.
Suitable for efficient CNG dispensing with flexible fueling operation.
Maximum indication error of +/-0.50% for precise fuel delivery.
Flow rate up to 30 Kg/min for efficient refueling.
Rated operating pressure of 20 MPa and maximum operating pressure of 25 MPa.
Designed for standard CNG vehicle fueling applications.
Supports data communication and system integration.
Operates in ambient temperature from -20 degrees C to +55 degrees C.
Voice prompt, fingerprint recognition, and bill printing available.
Ensures reliable dispensing quantity and supports accurate billing.
Designed to reduce fueling time and improve station throughput.
Built for controlled high-pressure CNG operation with safety-focused design.
Simple interface and smart features support easy daily operation.
Enables transaction management and operational record keeping.
Suitable for continuous use in demanding fueling environments.
| Parameter | Specification |
|---|---|
| Product Type | Three Bank & Two Nozzle |
| Dispensing Medium | CNG |
| Maximum Indication Error | +/-0.50% |
| Maximum Operating Pressure | 25 MPa |
| Rated Operating Pressure | 20 MPa |
| Ambient Temperature | -20 degrees C to +55 degrees C |
| Flow Rate | 30 Kg/min |
| Power Supply | 230V AC, 50Hz, Single Phase |
| Nozzle Type | NGV-1 |
| Communication Interface | RS485 |
Supports accurate dispensing operation and station-level control.
Enables communication with external systems and monitoring setup.
Helps maintain transaction and operational records.
Provides printed receipts for customers and station records.
Adds secure access control for authorized operation.
Improves user guidance and operating convenience.

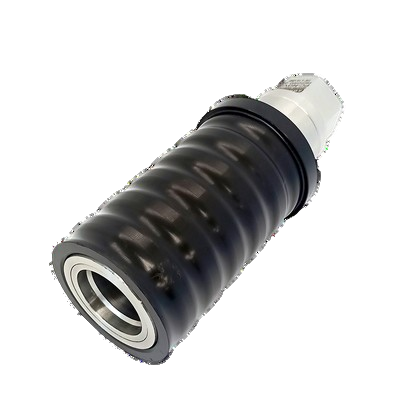

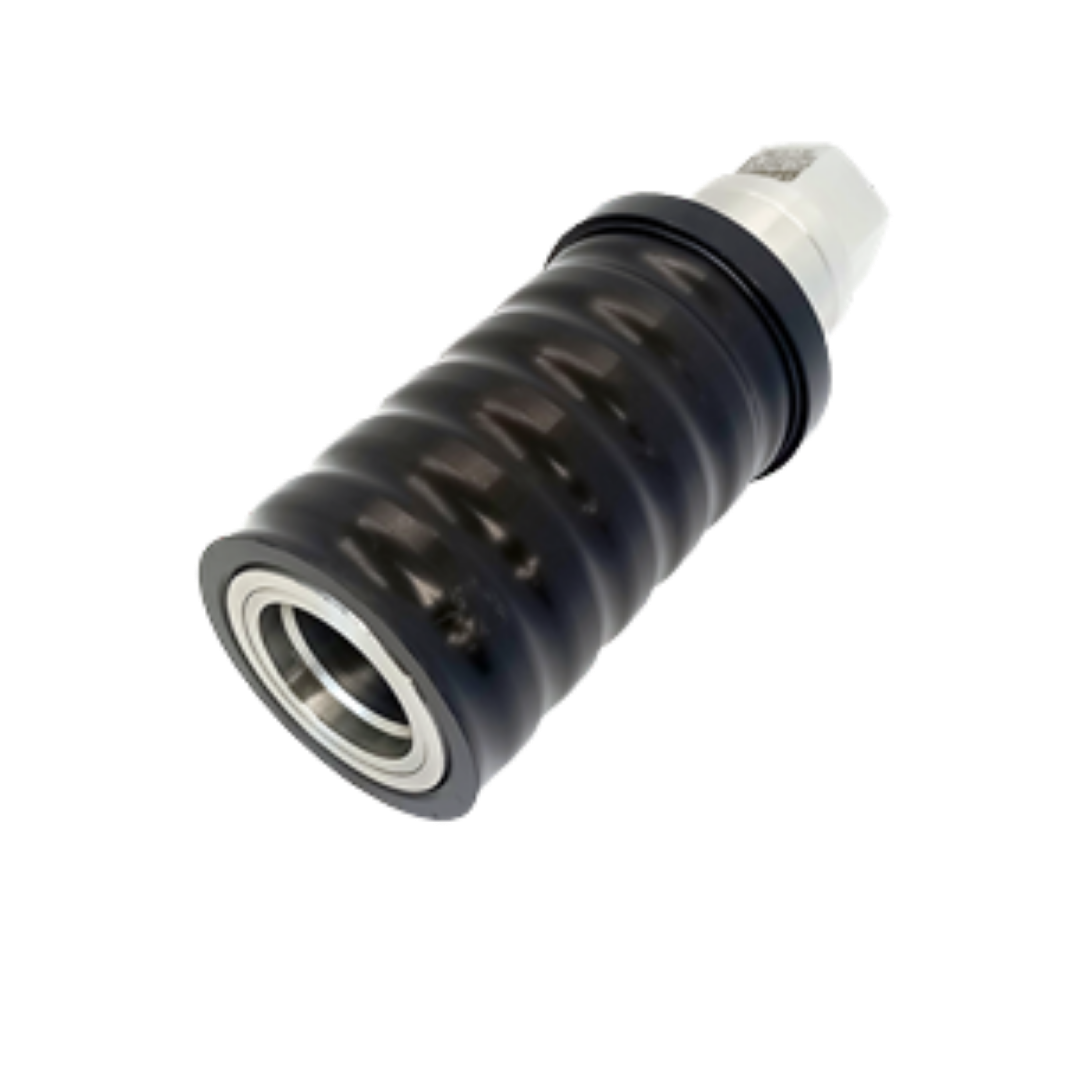

The dispenser is equipped with an NGV-1 nozzle, making it suitable for standard CNG vehicle fueling requirements. The two-nozzle configuration improves station flexibility and allows efficient dispensing operations for commercial vehicles, fleet users, and public refueling points.
Its dispensing system is designed for accurate fuel delivery, smooth operation, and reliable performance in everyday station conditions.

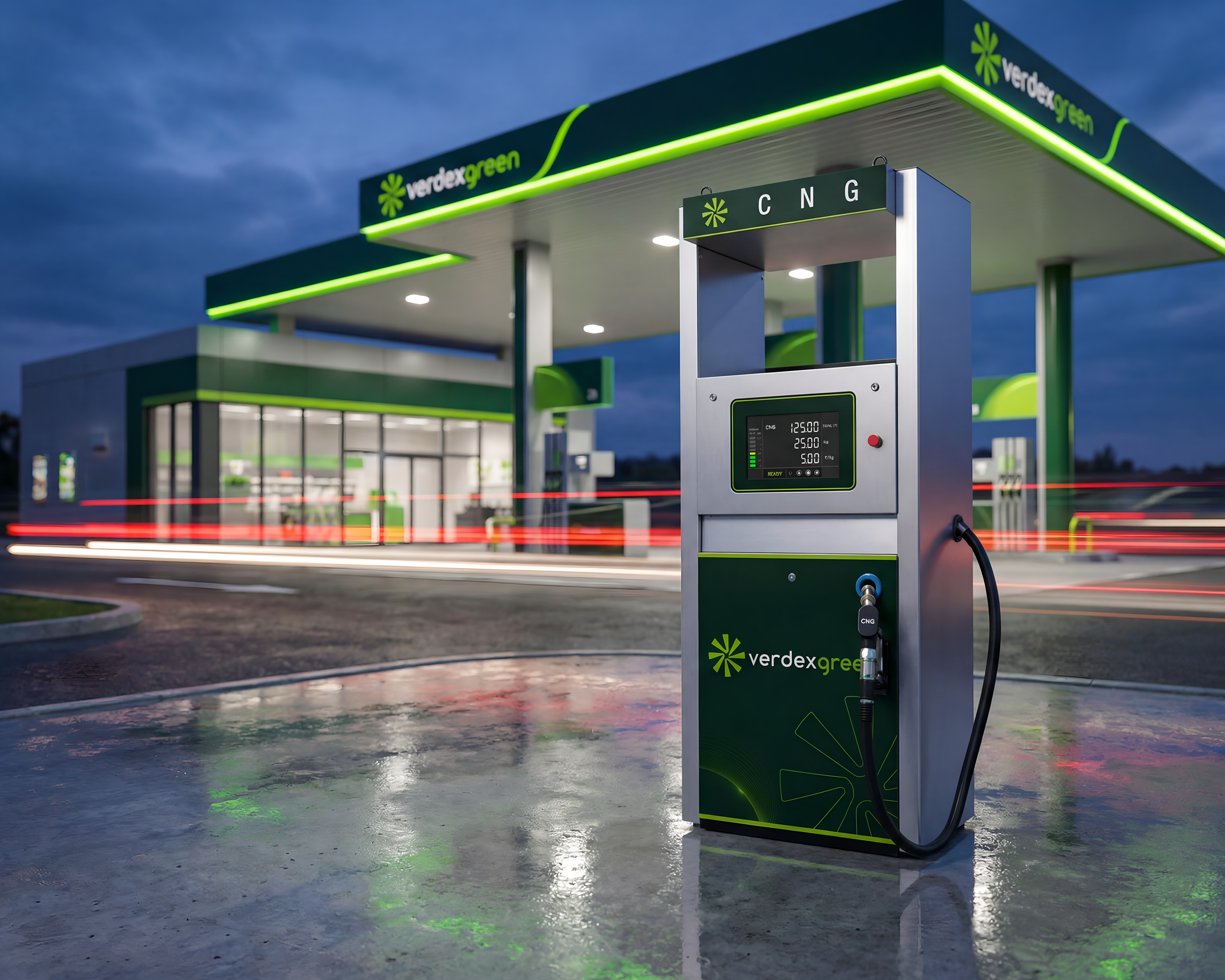

For public and private CNG vehicle refueling.
Suitable for taxis, buses, logistics vehicles, and transport fleets.
Useful for captive CNG fueling facilities.
Designed for locations with frequent daily refueling.
Supports clean fuel infrastructure for city transport.
Gives clear audio guidance during dispenser operation.
Improves operator security and controlled access.
Generates physical receipts for customers and station records.
CNG dispensing requires controlled pressure handling, accurate flow management, and dependable system response. Our dispenser is engineered to support safe and stable operation under high-pressure conditions.
The rated operating pressure of 20 MPa and maximum operating pressure of 25 MPa make it suitable for professional CNG station use.
The system is designed to maintain dispensing accuracy, operational safety, and reliable fuel delivery. Its intelligent control features help improve operator confidence and support smooth station management.
